Name: 10kW Home Energy Storage System (All-in-One)
Brand: Newbeebattery

10kW Home Energy Storage System (All-in-One) — 1/1

10kW Home Energy Storage System (All-in-One) view 1

Request a Quote

Plug-and-play 10kWh home ESS — 51.2V 200Ah LiFePO4 + 5kW pure sine inverter in one cabinet

Brand

Newbeebattery

Battery

51.2V 200Ah / 10.24kWh LiFePO4

Inverter

5kW pure sine wave (10kVA surge)

Solar Input

Max 4500W, MPPT 60~115VDC

MOQ

OEM / ODM

WhatsApp · Get Quote Email Inquiry

Integrated 10kW-class home energy storage system: a 51.2V 200Ah (10.24kWh) LiFePO4 battery with built-in BMS stacked with a 5kW pure sine wave inverter in one rolling cabinet (550×490×726mm). Solar MPPT charging up to 4500W plus 230VAC utility input — PV, grid, battery and load work together automatically. True plug-and-play: roll it in, connect PV and loads, and the house is backed up.

Why Choose This Battery

✓

All-in-one cabinet: battery + inverter, pre-wired, on casters

✓

51.2V 200Ah LiFePO4 (10.24kWh) with smart BMS, RS485 communication

✓

5kW pure sine wave output, 10kVA surge, 20ms transfer time

✓

Max PV input 4500W with built-in 80A MPPT charging

✓

230VAC utility input with 60A AC charging, 170~280V wide range

Models & Specifications

No	Details	N-10KW Home Storage System
— BATTERY —
1	Battery Voltage	51.2V
2	Capacity	200Ah / 10.24kWh
3	Battery Construction	Iron case + BMS
4	Charge Cut-off Voltage	58.4V
5	Discharge Cut-off Voltage	40V
6	Discharge Current	200A
7	Max Charge Current	160A
8	Communication	RS485
9	Battery Weight	About 92Kg
— SOLAR / AC INPUT —
10	Max PV Input Power	4500W
11	Max PV Input Voltage	145VDC
12	MPPT Voltage Range	60VDC~115VDC
13	Max PV Charge Current	80A
14	Rated AC Input Voltage	230VAC, 170~280V range
15	Rated AC Input Frequency	50/60Hz
16	Max AC Charge Current	60A
— INVERTER OUTPUT —
17	Rated Output Power	5000W
18	Surge Power	10000VA
19	Output Voltage / Frequency	230VAC±5%, 50/60Hz
20	Output Waveform	Pure sine wave
21	Max Efficiency	93%
22	Transfer Time	20ms
— MECHANICAL —
23	System Size (WDH)	550×490×726mm
24	Inverter Weight	About 11.5Kg

Characteristics

Integrated system: PV charging, battery storage and AC load output in one unit
Iron-case battery module with BMS: charge cut-off 58.4V, discharge cut-off 40V, 200A discharge
Pure sine wave output 230VAC±5%, 50/60Hz, max efficiency 93%
Seamless 20ms switch between grid and battery for uninterrupted backup
Compact footprint W550×D490×H726mm, about 92Kg battery module, easy relocation on wheels

Applications

Residential energy storage: solar self-consumption, backup for fridge/light/AC/TV during outages, peak-shaving on time-of-use tariffs, fully off-grid living with PV arrays

Related products

Wall-Mounted LiFePO4 Battery

5–10 kWh wall-mounted home storage, IP65, inverter-ready

Rack-Mounted LiFePO4 Battery

48V 100Ah 3U rack modules, up to 15 in parallel

Stackable All-in-One ESS

Battery + hybrid inverter tower, 5–30 kWh plug-and-play

Commercial & Industrial ESS Cabinet

215 kWh air-cooled LFP cabinet, grid & peak shaving

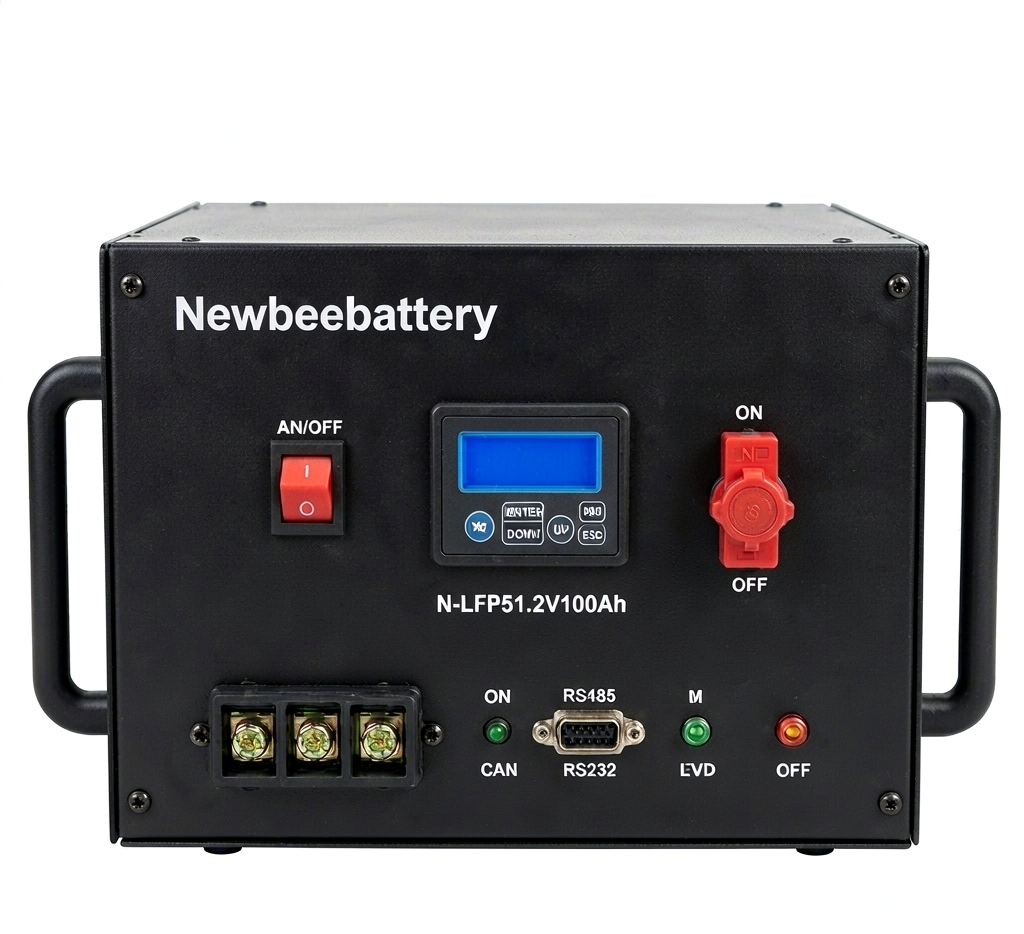

51.2V 100Ah 5.12kWh LiFePO4 Tower Battery

Home energy storage — 5.12kWh stackable LiFePO4 module, 15-unit parallel, inverter-compatible BMS

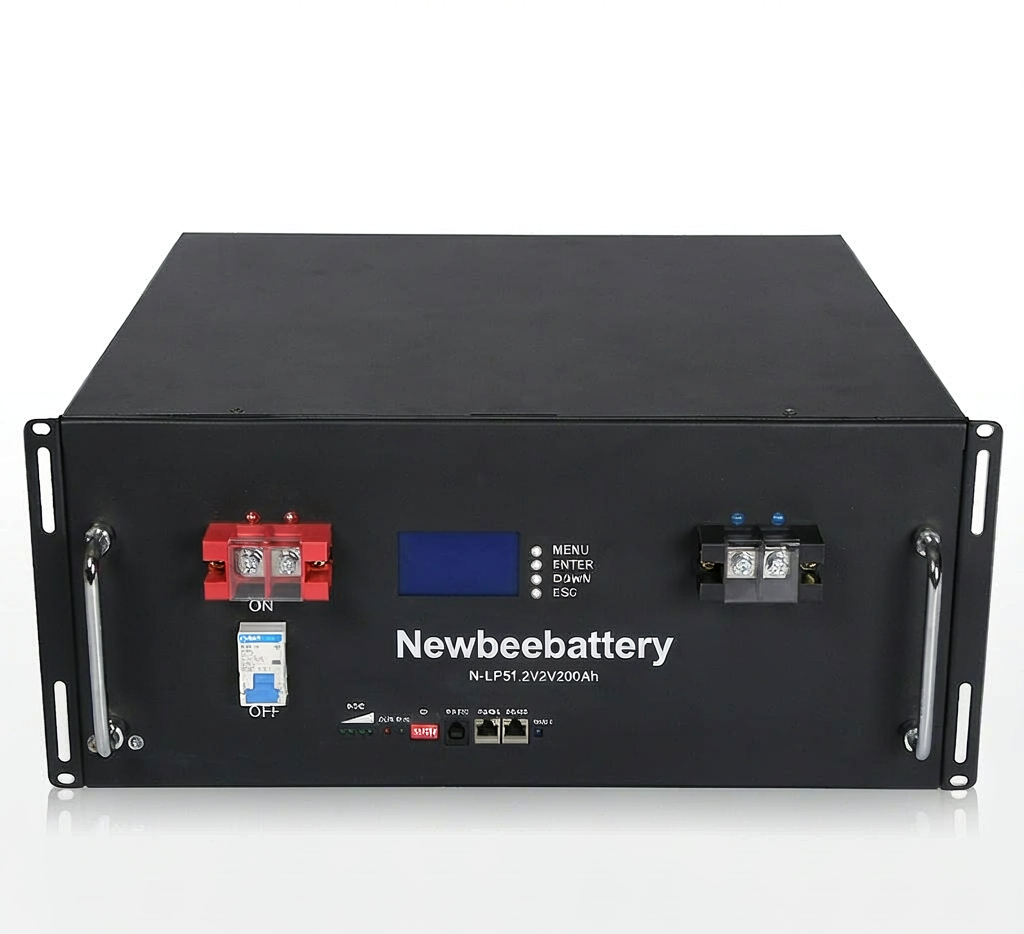

51.2V 200Ah 10.24kWh LiFePO4 Tower Battery

Home energy storage — 10.24kWh stackable LiFePO4 module, 15-unit parallel, inverter-compatible BMS

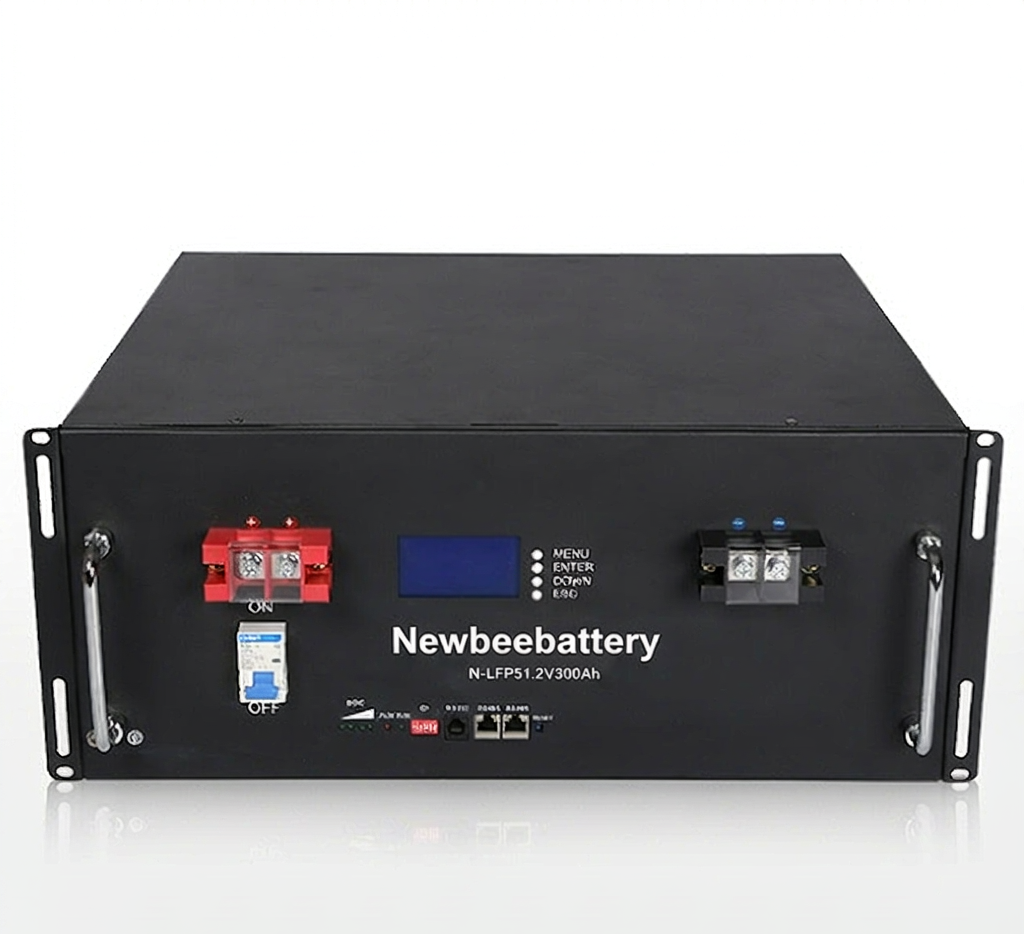

51.2V 300Ah 15.36kWh LiFePO4 Tower Battery
